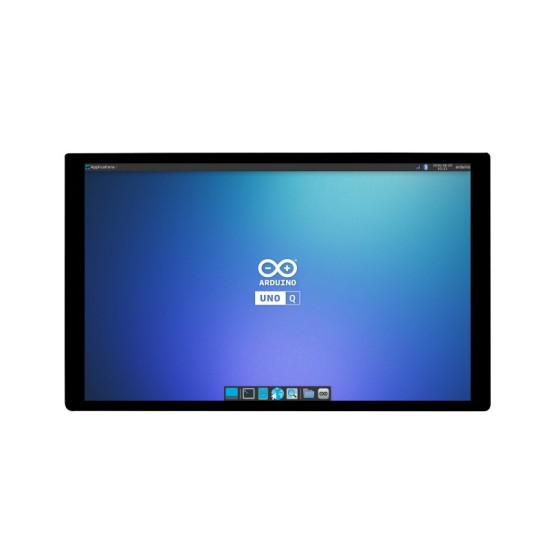

10.1inch DSI Capacitive Touch Screen, 800 × 1280 Resolution, IPS Panel, Compatible With Arduino UNO Q, Supports Board-to-Board Connection

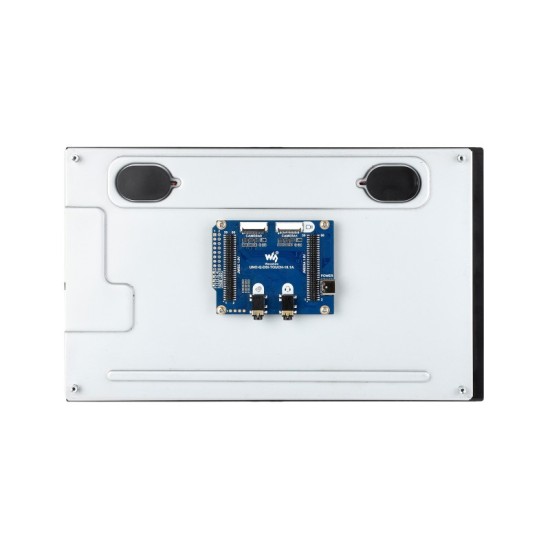

10.1inch DSI capacitive touch screen, 800 × 1280 resolution, IPS panel, compatible with Arduino UNO Q, supports Board-to-Board connection. Supports board-to-board connection without additional wiring (Features the standard UNO form factor, supporting direct stacking onto the UNO Q board via the JMEDIA and JMISC connectors for compact integration). Include USB Type-A male port to Type-C male port cable.

Specifications:

• Size: 10.1"
• Resolution: 800 x 1280
• Display panel: IPS
• Viewing angle: 178
• Brightness: 300cd/m2
• Touch type: Capacitive
• Touch interface: I2C
• Touch points: Multi-touch
• Touch panel: Toughened glass
• Touch panel tech: Optical bonding
• Compatible board: Arduino UNO Q
• Connection: Board-to-board
• Camera: Dual camera interfaces, 22PIN CSI
• Audio: Dual 3.5mm audio jacks
• Sound: Dual speakers

The display orientation is portrait by default, 800 × 1280 resolution (H×V). Change the software config for landscape display.

WIKI: http://docs.waveshare.com/UNO-Q-DSI-TOUCH-10.1A
