Big MOSFET Slide Switch with Reverse Voltage Protection, HP

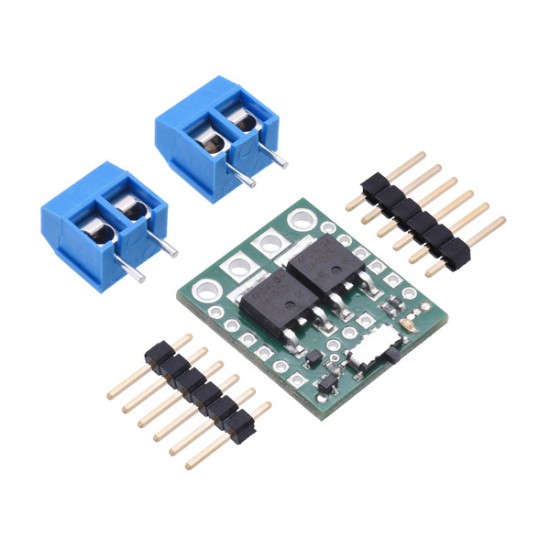

This product is a power switch implemented as a pair of P-channel MOSFETs configured as a high-side switch with reverse voltage protection and controlled by a micro slide switch. Because the main current does not go through the controlling mechanical switch, a variety of switches can be used without concern for the current they can carry. For example, a small slide or toggle switch can be mounted conveniently on a control panel with thin wires running to it, while the main power path can be shorter and with thicker wires. Pushbutton or tactile switches can also be used for momentary switching applications.

Unlike the Pololu Pushbutton Power Switches, which can lose their state when power is disconnected and reapplied, the conducting state of the MOSFET Slide Switches is determined only by the physical control switch (or a signal supplied to the “ON” pin), independent of power applied to the board. This can make them more appropriate for applications where the supplied power may be intermittent.

Warning: Do not use this switch as an emergency cutoff or similar safety disconnect in applications where failure to cut power could lead to injury or property damage.

Specifications:

• Absolute max voltage: 40 V
• Recommended operating voltage: 4.5 V to 32 V
• MOSFET combined on resistance (max): 13 mΩ @ 4.5 V, 8.6 mΩ @ 10 V
• Continuous current at 55°C⁽¹⁾: 6.0 A
• Continuous current at 150°C⁽¹⁾: 16 A
• Maximum current: 90A
• Current consumption in on state⁽²⁾: ~65 μA/V
• LED color: green
• Size: 0.8″ × 1.0″ × 0.16″
• Weight: 2.7 g

1 At 12 V with ambient temperature of 22°C in still air.

2 On state current is dominated by indicator LED; current is approximately proportional to input voltage.
