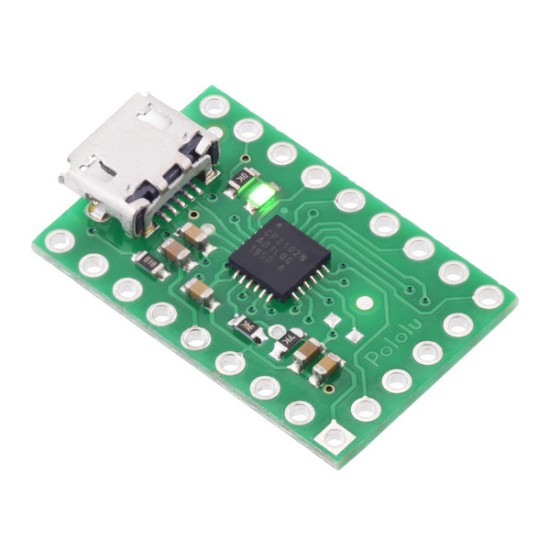

CP2102N USB-to-Serial Adapter Carrier

This USB-to-serial adapter is a breakout board for the Silicon Labs CP2102N USBXpress USB-to-UART bridge, and it is a great solution for connecting microcontroller projects and other logic-level serial devices to a personal computer. The tiny unit measures only 0.6″ × 0.95″ including its Micro-USB connector. It offers several options for accessing the data, control, and GPIO pins on the CP2102N, all of which are made available on a 0.1″ spacing.

This board uses 3.3 V signal levels by default, but the signal pins can tolerate higher voltages, allowing the adapter to be used with 5 V systems that see 3.3 V as a logic high. The green LED on the SUSPEND line indicates an active USB connection when lit.

The adapter looks like a standard virtual serial port (COM port) to the computer’s operating system, which means it can be used with any software designed to work with a serial port (even a legacy RS-232 port). The CP2102N is a full-speed USB 2.0 device and allows baud rates of up to 3 Mbps. Drivers are available from Silicon Labs for Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Linux, and Mac OS X.

This product requires a USB A to Micro-B cable (not included) to connect to a computer.

Specifications:

• Dimensions: 0.6″ × 0.95″ including connector
• USB standard: USB 2.0 (full speed)
• Connector: USB Micro-B
• Logic voltage level: 3.3 V (5 V tolerant)
• Supported baud rates: 300 bps to 3 Mbps
• Supply current: 15 mA
