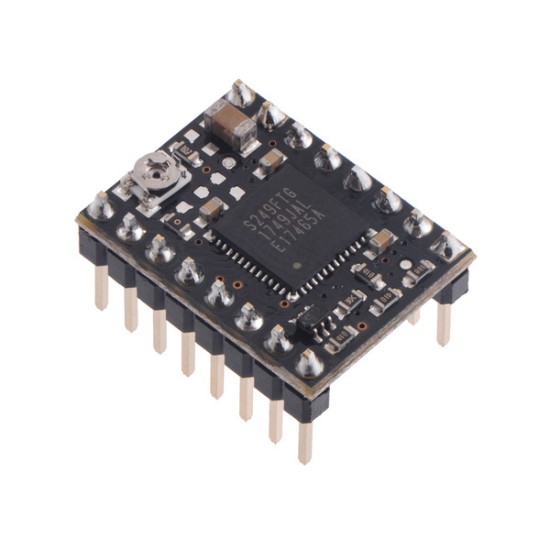

TB67S249FTG Stepper Motor Driver Compact Carrier (Header Pins Soldered)

This version of our TB67S249FTG Stepper Motor Driver Compact Carrier ships with male header pins installed, so no soldering is required to use it with an appropriate 16-pin socket or solderless breadboard. The TB67S249FTG has a wide operating voltage range of 10 V to 47 V, and our carrier board can deliver approximately 1.6 A per phase continuously without a heat sink or forced air flow (up to 4.5 A peak). Please see the TB67S249FTG Stepper Motor Driver Compact Carrier product page for more information about the driver.

Specifications:

• Motor driver: TB67S249FTG
• Minimum operating voltage: 10 V
• Maximum operating voltage: 47 V
• Continuous current per phase: 1.6 A
• Maximum current per phase: 4.5 A
• Minimum logic voltage: 2 V
• Maximum logic voltage: 5.5 V
• Microstep resolutions: full, non-circular 1/2, 1/2, 1/4, 1/8, 1/16, 1/32
• Current limit control: potentiometer
• Reverse voltage protection?: N
• Header pins soldered?: Y

WIKI: https://www.pololu.com/product/3097/resources
