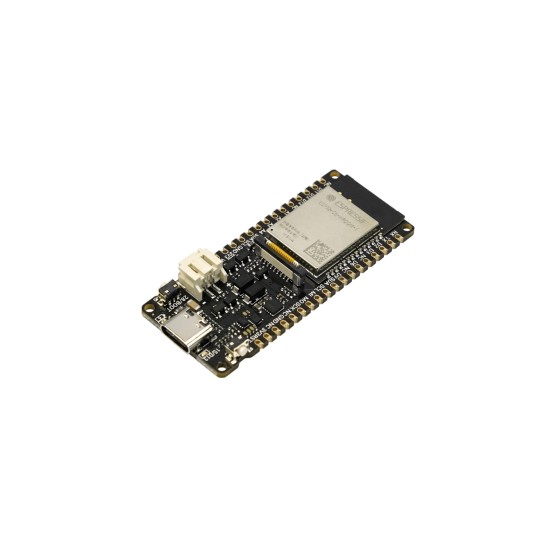

FireBeetle 2 ESP32-C5 IoT Development Board (2.4 / 5GHz Wi-Fi 6, Solar Charging, Home Assistant)

The FireBeetle 2 ESP32-C5 is a high-performance, low-power IoT development board designed for advanced smart home and extensive IoT applications. Its core strength lies in the groundbreaking Espressif ESP32-C5 chip, offering dual-band (2.4 & 5 GHz) Wi-Fi 6 for unparalleled wireless performance, a comprehensive multi-protocol hub supporting BLE, Zigbee, and Thread, and an advanced power management system with integrated solar charging. Powered by a 240 MHz RISC-V processor with 384 KB SRAM and 4 MB Flash, it achieves an ultra-low deep-sleep current of just 21 μA. This makes it an ideal solution for demanding applications. Whether for building a low-latency robotics controller, a solar-powered outdoor sensor, or a powerful, custom multi-protocol device for a Home Assistant ecosystem, the ESP32-C5 provides the necessary performance and flexibility.

The ESP32-C5 is Espressif's first chipset to integrate dual-band Wi-Fi 6, representing a monumental leap in wireless capabilities for IoT devices. By providing access to the 5 GHz band, the FireBeetle 2 ESP32-C5 bypasses the heavily congested 2.4 GHz spectrum, resulting in significantly higher transmission rates, lower latency, and dramatically reduced interference. This is critical for:

• High-Throughput Data Streaming: Ideal for developing custom IP cameras, FPV drones, or local servers. The high bandwidth of the 5GHz band ensures smooth and reliable streaming of high-definition video.
• Low-Latency Control: Facilitates the creation of highly responsive robotics, real-time interactive systems, and industrial controllers where precise command execution is essential.

Furthermore, Wi-Fi 6 technology enhances network efficiency through features like OFDMA (Orthogonal Frequency Division Multiple Access) for better multi-device performance and TWT (Target Wake Time) to reduce device power consumption, intelligently extending battery life.

Specifications:

• Operating Voltage: 3.3V
• Type-C Input Voltage: 5V DC
• VIN Input Voltage: 5V DC or 4.5-6V solar panel
• Maximum Charging Current: 0.5A
• Sleep Current: 21 μA (deep sleep mode, battery powered)
• Module Size: 25.4 x 60 mm
• Processor: RISC-V single-core processor
• Clock Frequency: 240 MHz
• SRAM: 384 KB
• ROM: 320 KB
• Flash: 4 MB
• LP SRAM: 16 KB
• Wi-Fi Frequency Bands: 2.4 GHz and 5 GHz, 1T1R
• Wi-Fi Protocols: IEEE 802.11a/b/g/n/ac/ax
• IEEE 802.11a/b/g/n (data rate up to 150 Mbps)
• IEEE 802.11ax (20 MHz-only non-AP mode)
• Wi-Fi Modes: Station mode, SoftAP mode, SoftAP+Station mode and Promiscuous mode
• Bluetooth Protocols: Bluetooth 5, Bluetooth mesh
• Bluetooth Frequencies: 125 Kbps, 500 Kbps, 1 Mbps, 2 Mbps
• Compatible with IEEE 802.15.4-2015 protocol
• Frequency Band: 2.4 GHz
• Data Rate: 250 Kbps
• Supports Thread 1.3, Zigbee 3.0

Interface Pins:

• Digital I/O x18
• LED PWM Controller with 6 channels
• SPI x1
• UART x3 (LP UART x1)
• I2C x2 (LP I2C x1)
• I2S x1
• Infrared Transceiver: 5 transmitting channels, 5 receiving channels
• 1x 12-bit SAR ADC with 7 channels
• DMA Controller with 3 receiving channels and 3 transmitting channels

WIKI: https://wiki.dfrobot.com/dfr1222/
