ESP32-S3 Round Touch Display Development Board (1.85", AI Voice & Wireless Charging)

The ESP32-S3 Round Display Development Board is a powerful, all-in-one platform engineered for creating sophisticated visual and interactive applications. It builds upon a feature-rich ESP32-S3 core by integrating a vibrant, 1.85-inch circular touchscreen directly onto the board. The development board is packed with features beyond the display, including Wi-Fi & Bluetooth connectivity, onboard audio for AI voice interaction, and convenient Qi wireless charging. This high level of integration simplifies the entire development process for complex projects like smart home control panels, industrial HMIs, and custom wearable prototypes, allowing developers to focus on what truly matters: the software and user experience

At the core of this development board lies a powerful ESP32-S3R8 dual-core processor, running at a main frequency of up to 240MHz. This robust processing power is complemented by a generous memory configuration, including 8MB of PSRAM and 16MB of Flash. This combination gives the board the resources to handle demanding tasks, render complex graphical user interfaces like LVGL smoothly, and execute AI algorithms for voice and sensor data processing.

• MCU: ESP32-S3R8 Dual-Core @ 240MHz
• PSRAM: 8MB
• Flash: 16MB On-board
• SRAM: 520KB
• Screen: 1.85" Round TFT LCD
• Resolution: 360 x 360 Pixels (262K Colors)
• Touch: 5-Point Capacitive Touchscreen
• UI Frameworks: LVGL, Arduino GFX, and more
• Wireless: 2.4GHz Wi-Fi & Bluetooth LE 5.0
• Wired Interface: USB Type-C (for power and data)
• Wireless Power: Qi Wireless Charging Receiver
• Audio Input: Onboard I2S Digital Microphone
• Audio Output: 3.5mm Audio Jack
• Storage: MicroSD Card Slot
• Programming: Arduino IDE, ESP-IDF, MicroPython

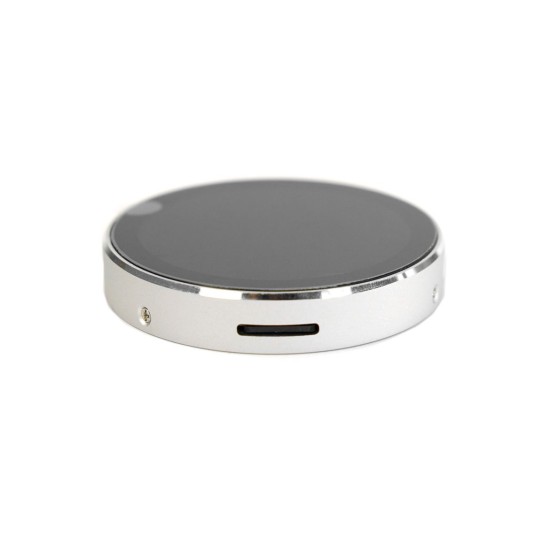

• Case: CNC Aluminum Alloy Shell
• Size: ~ 58 x 58 x 11mm

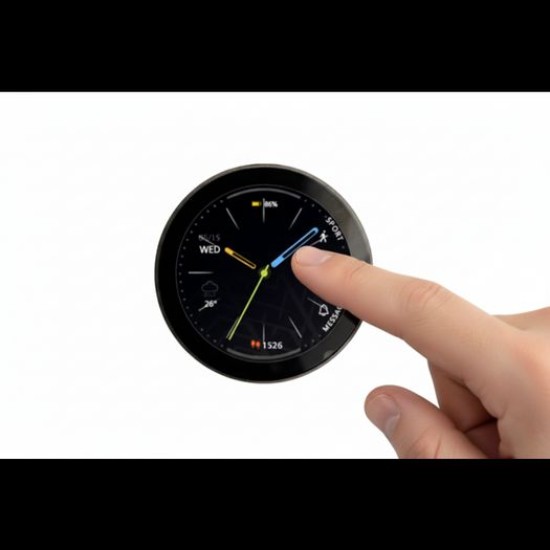

The esp32 s3 dev board's most striking feature is its integrated 1.85-inch round TFT LCD screen, which offers a sharp 360x360 pixel resolution and a palette of 262K colors. This circular HMI panel ensures excellent visual clarity and a wide viewing angle. Paired with a responsive capacitive touch controller, it delivers an intuitive multi-touch experience essential for modern UI design and fluid user interaction.

Engineered for next-generation voice-controlled applications, this esp32 display development board includes a built-in I2S digital microphone and a standard 3.5mm audio interface. This integrated audio hardware allows for seamless voice capture and audio output, enabling the development of projects with custom voice assistant functionality, real-time sound analysis, and interactive audio feedback.

WIKI: https://wiki.dfrobot.com/dfr1221/
