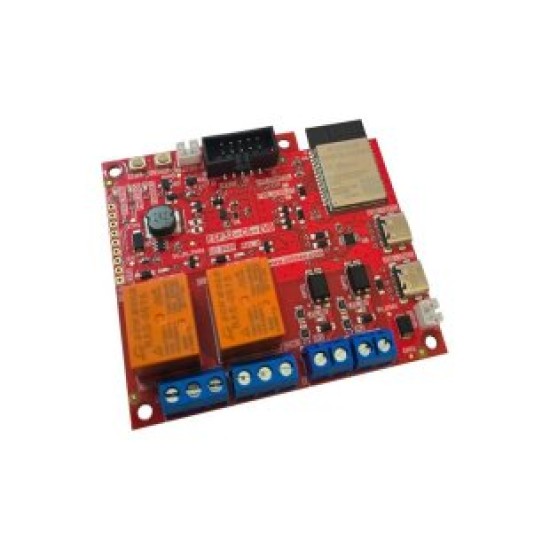

ESP32-C5-EVB Board with WiFi6 BT5 LE and Zigbee etc

Description: The ESP32-C5-EVB is a brand-new evaluation board built around the ESP32-C5-WROOM-N8R4 module from Espressif, designed to bring dual-band wireless connectivity, ample memory, and robust control features into one compact, versatile package.

Features:

• ESP32-C5-WROOM-N8R4 module:
  - 32 bit RISC-V processor 240Mhz
  - Dual-Band Wi-Fi (2.4 GHz + 5 GHz)
  - Bluetooth 5, Zigbee, Thread, Matter
  - 8 MB SPI flash + 4 MB PSRAM memory
• Two relays – rated 250V / 10A
• Two opto-isolated inputs
• UEXT connector
• USB-C for CH340x USB-serial adapter (power and serial programming)
• USB-C for native USB (power and JTAG debug)
• User/boot button
• Reset button
• Extension GPIO header with pads for connector
• Li-Po UPS charger & 5V DC step-up converter (relays work on battery)
• Three mounting holes
• Dimensions: (80x70)mm

Documents:

• ESP32-C5-EVB user manual
• Arduino demos at GitHub
• ESP-IDF demo at GitHub
