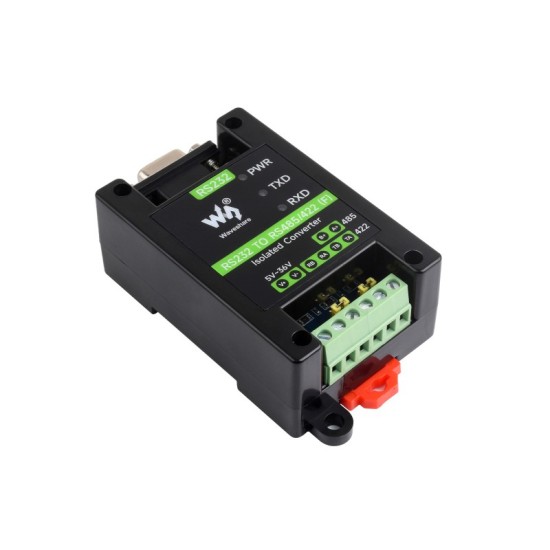

RS232 To RS485/422 Active Digital isolated Converter, Onboard Original SP3232EEN and SP485EEN Chips, Options for RS232 DB9 Male / Female port

RS232 To RS485/422 Active Digital isolated Converter, Onboard Original SP3232EEN and SP485EEN Chips, Options for RS232 DB9 Male / Female port.

Adopts SP3232EEN and SP485EEN chips solution, provides stable communication with built-in galvanic isolation, lightningproof and anti-electrostatic protection and so on, it is an ideal choice for industrial control equipments and/or applications with high communication requirement.

Features:

• Onboard SP3232EEN and SP485EEN chips. Fast communication, stable and reliable, better compatibility
• Stable transmission at the rate of 300~921600bps
• Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
• Onboard unibody digital isolation, allows signal isolation, high reliability, strong anti-interference, low power consumption
• Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
• Onboard self-recovery fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance
• Onboard 15KV ESD isolation protection and 600W lightningproof & anti-surge protection
• Onboard 120R terminal resistor on the RS485/RS422 interface, disable by default, configurable by jumper
• Onboard power supply screw terminal, allows 5V~36V DC wide range input
• 3 LEDs for indicating the power and transceiver status
• Industrial rail-mount ABS case design, small in size, easy to install, and cost-effective

Specifications:

• Power supply interface: 5~36V DC, Anti-reverse protection
• Baud rate: 300 ~ 921600bps (300~115200bps is recommended for long-distance reliable communication)
• Device port: RS232, RS485/422
• Protection: 600W lightningproof and surge-suppress, 15KV ESD protection
• Transmision mode: point-to-point

WIKI: http://www.waveshare.com/wiki/RS232_TO_RS485/422
