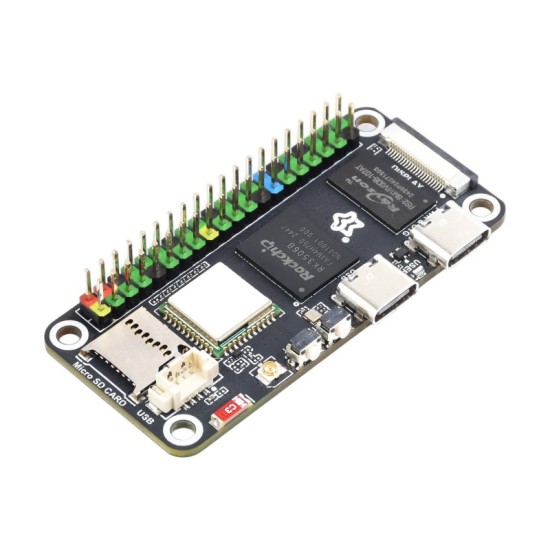

Luckfox Lyra Zero W Micro Linux Development Board Based On RK3506B Chip, Integrated With Triple-core Arm Cortex-A7 And Arm Cortex-M0 Processors

Luckfox Lyra Zero W Micro Linux Development Board Based On RK3506B Chip, Integrated With Triple-core Arm Cortex-A7 And Arm Cortex-M0 Processors.

Luckfox Lyra Zero W is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, SDMMC, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging. Integrated wireless communication module, suitable for IoT communication scenarios such as smart home and industrial control.

Specifications:

• Model:Luckfox Lyra Zero W
• Processor: Triple-core Arm Cortex-A7 (1.2GHz) + Arm Cortex-M0
• Memory: Onboard 512MB DDR3L
• USB: Original USB OTG 2.0 × 1 + HUB expanded USB HOST 2.0 × 2
• Display Interface: MIPI DSI 2-lane
• GPIO: 28 × Rockchip Matrix IO pins
• Default Storage: SPI NAND FLASH (256MB)
• Wireless: Onboard 2.4GHz Wi-Fi 6 / Bluetooth 5.2 / BLE

WIKI: https://wiki.luckfox.com/Luckfox-Lyra-Zero-W
