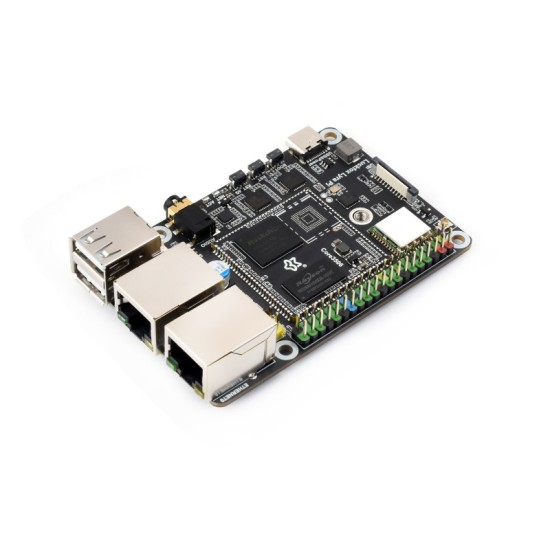

Luckfox Lyra Pi Linux Micro Development Board, Based On Luckfox Core3506 Core Board, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors

Luckfox Lyra Pi Linux Micro Development Board, Based On Luckfox Core3506 Core Board, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors.

The Luckfox Lyra Pi A (8GB eMMC) is a cost-effective Linux micro development board, based on the Luckfox Core3506 chip to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, RMII, SDIO, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 function signals on GPIO pins, allowing for flexible configuration of interfaces like PWM, UART, I2C, SPI, and I2S for quick development and debugging.

Features:

• Processor: Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
• Memory: 512MB DDR3L
• USB: Original USB OTG2.0 × 1 + Extended USB HOST2.0 × 3 via HUB
• Display: MIPI DSI 2-lane
• GPIO: 23 × Rockchip Matrix IO pins + 5 × GPIO pins
• Default Storage: 8GB eMMC
• Wireless: Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE
• Include IPX 2.4G 2DB Antenna

WIKI: https://wiki.luckfox.com/Luckfox-Lyra-Pi
