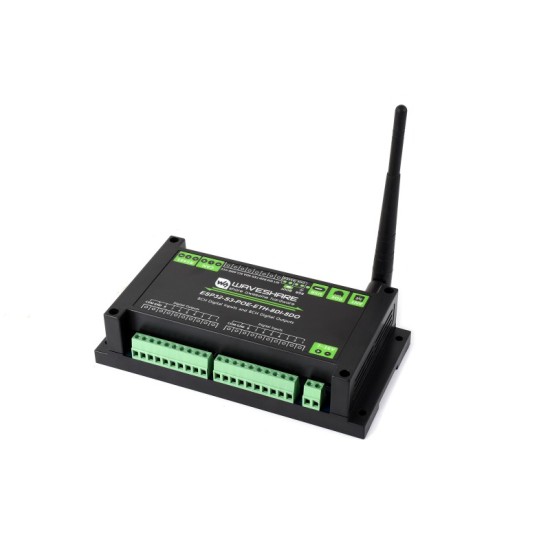

Industrial ESP32-S3 Control Board With 8-Channel Digital Input & Outpu With Multiple Isolation Protection Circuits

Industrial ESP32-S3 Control Board With 8-Channel Digital Input & Output, Built-in Xtensa 32-bit LX7 Dual-core Processor, Up To 240MHz, With Multiple Isolation Protection Circuits.

Features:

• Based on ESP32-S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz
• Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, with excellent RF performance
• The outputs adopt Darlington transistors with optocoupler isolation, delivering higher drive capability with a sink current of up to 500 mA, and feature built-in flyback diode protection
• Supports passive and active digital input, with bi-directional optocoupler isolation. The digital output supports digital input linkage control
• Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors
• Onboard isolated CAN interface, for connecting to various CAN devices
• Onboard pin header, allowing access to other devices
• Onboard USB Type-C port for power supply, firmware downloading and debugging
• Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
• Onboard RTC chip, supports scheduled tasks
• Onboard W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
• Built-in PoE module for PoE capability (compliant with IEEE 802.3af standard)
• Onboard optocoupler isolation to prevent interference from external circuit
• Onboard digital isolation to prevent interference from external signal
• Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply required for the isolated terminal
• Onboard TF card slot for external TF card storage of images and files
• Built-in buzzer, RGB LED, power supply, RS485 and CAN TX/RX indicators for monitoring the operating status of the devices
• Rail-mounted protective case, easy to install, safe to use

WIKI: http://www.waveshare.com/wiki/ESP32-S3-POE-ETH-8DI-8DO
