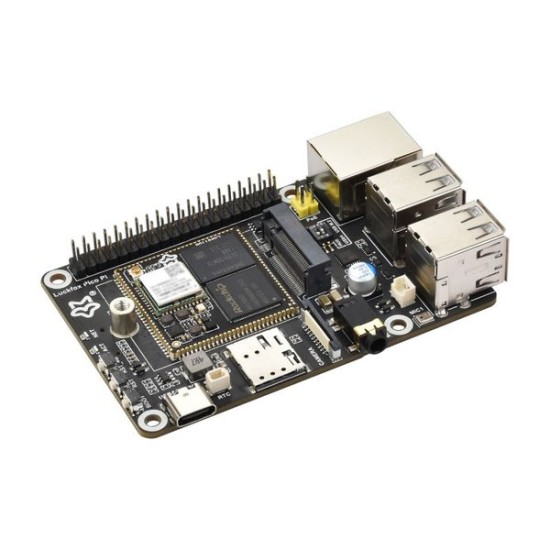

Luckfox Pico Pi Linux Micro 4G Development Board, Based On Luckfox Core1106, 8GB eMMC (3rd Gen ISP3.2)

The Luckfox Pico Pi is a cost-effective Linux micro development board, based on the Luckfox Core1106 chip to provide a simple and efficient development platform for developers. Supports a variety of interfaces including MIPI CSI, GPIO, UART, SPI, I2C, USB, and an M.2 slot for 4G module, etc., which is ideal for a wide range of embedded applications. Built-In Self-developed Third-generation ISP3.2, Up To 5MP Image Processing.

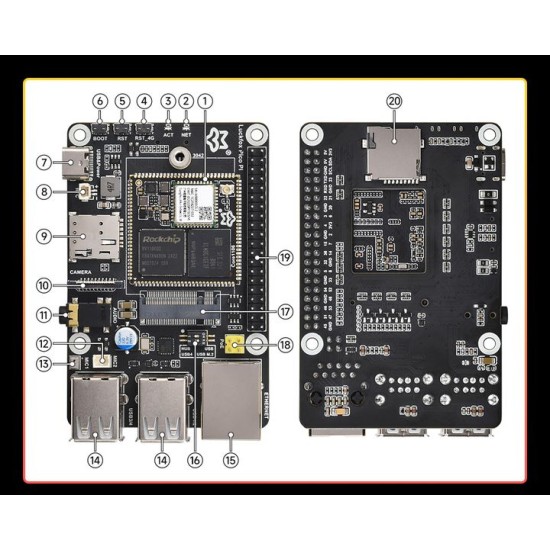

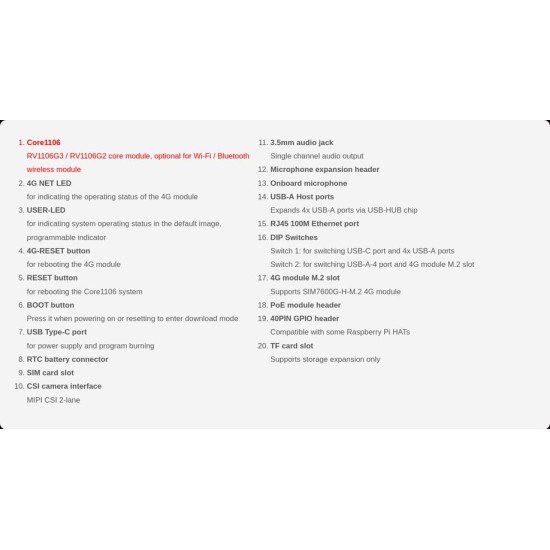

Onboard Wi-Fi module, 4G module M.2 slot, PoE module header, Type-C, USB-A HOST, MIPI CSI, GPIO, Network port, 3.5mm audio jack, SMD microphone, microphone header, RTC battery connector, etc.

Specifications:

• Luckfox Pico Pi A W 4G
• Processor: RV1106G3, RISC-V MCU
• Camera Interface: MIPI CSI 2-lane
• ISP: 3rd Gen ISP Input 5M@30fps
• NPU: 1TOPS
• Memory: 256MB DDR3L
• Storage: 8GB eMMC
• Wireless: Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module

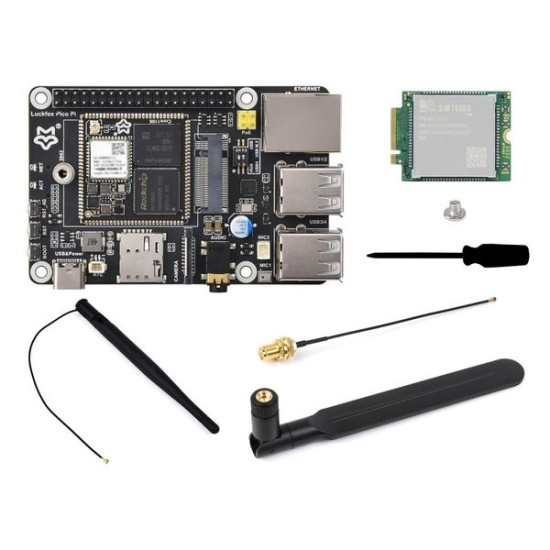

• 4G: The SIM7600G-H-M.2 (LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, and EDGE, etc)
• Supports USB HUB Expansion (switch to USB-C / 4 x USB-A)
• SMD microphone with expansion header and 3.5mm audio jack

WIKI:  https://wiki.luckfox.com/Luckfox-Pico-Pi/
