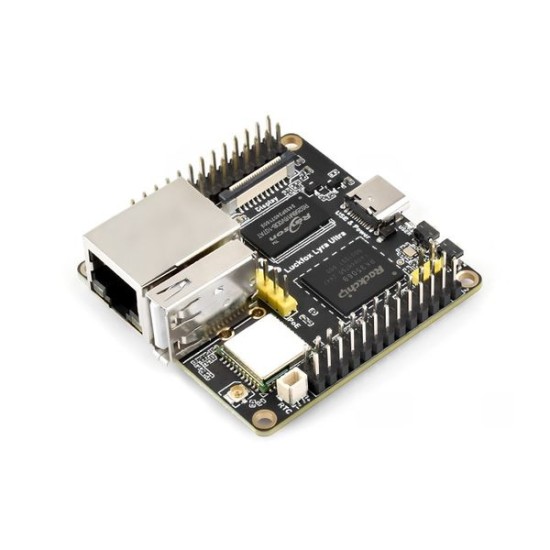

Luckfox Lyra Ultra RK3506B Linux Micro Development Board, Onboard 8GB eMMC, Integrates Triple-core ARM Cortex-A7 and ARM Cortex-M0 Processors

Luckfox Lyra Ultra is a Linux micro development board powered by the Rockchip RK3506B to provide a simple and efficient development platform for developers. Onboard multiple high-speed interfaces including MIPI DSI, RMII, DDR, USB, etc. to meet various application scenarios. The low-speed interfaces utilize Rockchip Matrix IO design which supports multiplexing 98 functionsignals on GPIO pins, allows for flexible configuration of interfaces like PWM, UART, I2C and I2S for quick development and debugging.

Includes: USB Type-A to Type-C cable ~1m x1, IPX 2.4G 2DB antenna x1

Specifications:

• Luckfox Lyra Ultra W
• Processor: Triple-core Arm Cortex-A7 (1.2Ghz) + Arm Cortex-M0
• Memory: 512MB DDR3L
• USB: Original USB OTG2.0 × 1, Extended USB HOST2.0 × 2 via HUB
• Display: MIPI DSI 2-lane

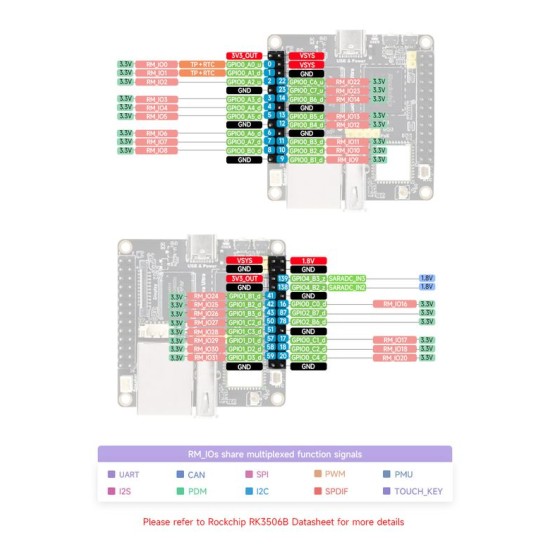

• GPIO: 29 × Rockchip Matrix IO pins + 4 × GPIO pins
• Ethernet port: 10/100M Ethernet port
• Default storage: 8GB eMMC
• Wireless: Onboard 2.4GHz WiFi 6 / Bluetooth 5.2 / BLE

WIKI: https://wiki.luckfox.com/Luckfox-Lyra/
