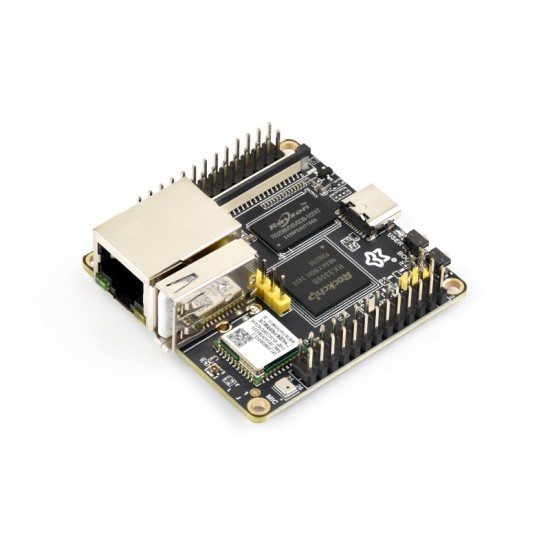

Luckfox Nova Micro Development Board, Based On Rockchip RK3308B, 8GB eMMC, Integrated High-Performance Audio Codec, WiFI

The Luckfox Nova is an embedded development board based on the Rockchip RK3308B chip. The Rockchip RK3308B is a high-performance processor designed for smart voice interaction, audio input/output processing, and digital multimedia applications. Its core architecture adopts 64-bit quad-core ARM Cortex-A35, with a maximum clock speed of 1.3GHz, providing powerful computing capability to handle complex embedded tasks with ease.

• ARM quad-core 64-bit Cortex-A35 at 1.3GHz, with integrated high-performance Audio Codec and Voice Activity Detection (VAD) modules
• Built-in Audio Codec with up to 8-channel microphone inputs for easy development of multi-microphone array applications
• Adapting 2 × 26PIN GPIO headers, supports UART, SPI, I2C and other peripheral controls
• Onboard 8GB eMMC + TF card expansion (supports SDIO 3.0 protocol), to meet the needs of large-capacity data storage
• Onboard 512MB DDR3 memory for smooth multi-tasking operation
• Onboard 2.4GHz Wi-Fi 6 and Bluetooth 5.2/BLE Bluetooth Module, Providing Stable Connection And Efficient Transmission

Include:

• Include USB Type-A to Type-C cable x1
• IPEX4 to SMA cable x1
• 6DB antenna ~17cm x1

WIKI: https://wiki.luckfox.com/Luckfox-Nova/
